In the current era of continuous innovation and upgrading in the field of inflation equipment, an intelligent air pump based on yspringYS32MD320 chip and BLDC algorithm stands out, providing efficient solutions for diverse scenarios such as tire inflation, ball pressure replenishment, and outdoor equipment inflation. Next, let's delve into its technical architecture and measured performance together. Please watch the video~
Technical Architecture

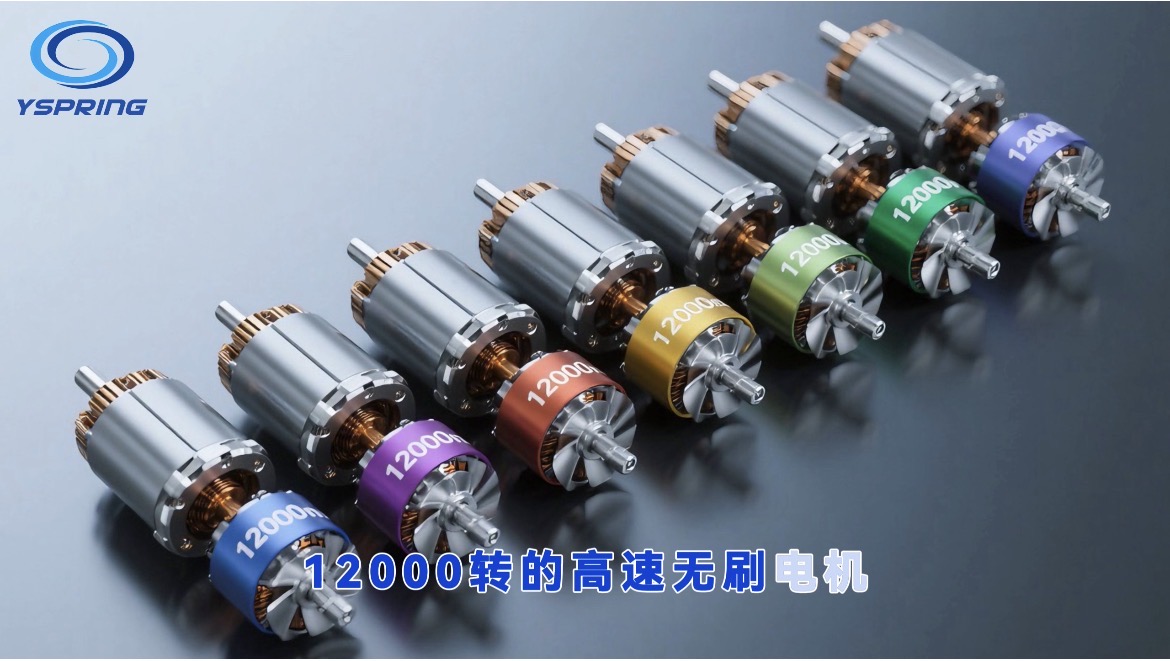

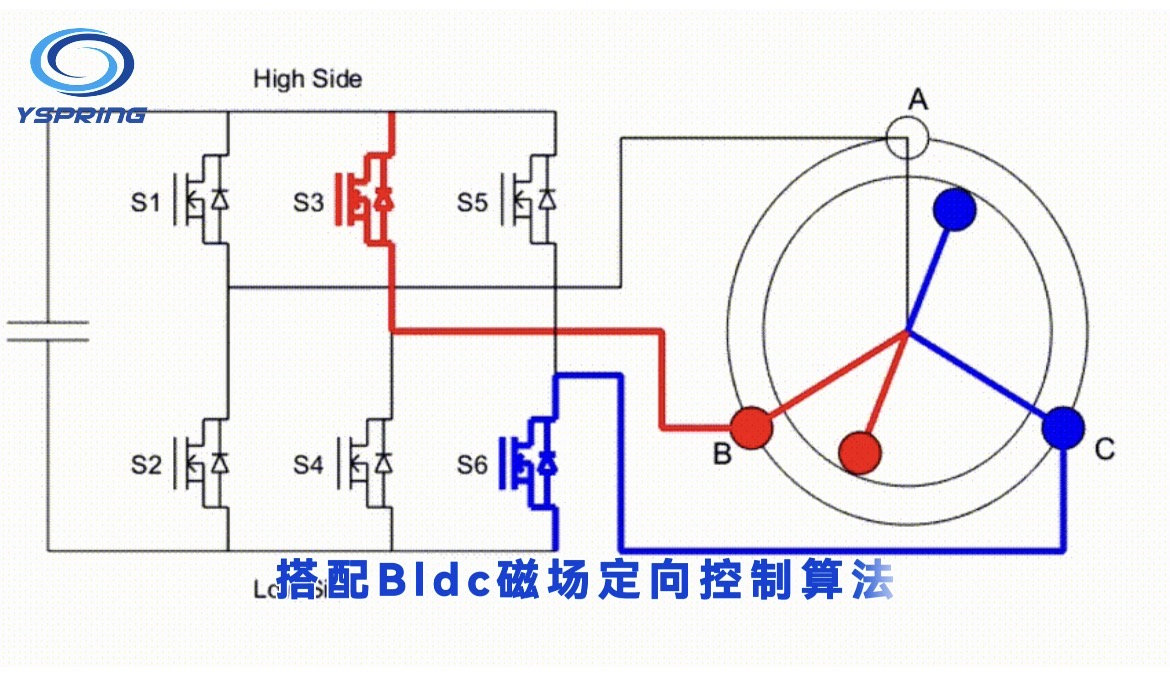

Motor: 7-pole 12000 rpm high-speed brushless motor, equipped with BLDC magnetic field orientation control algorithm, precise speed and torque control, efficient and quiet.
Power supply: 7.4V lithium battery with triple protection against overvoltage, undervoltage, and overcurrent, capable of real-time monitoring of battery level.
Tested performance

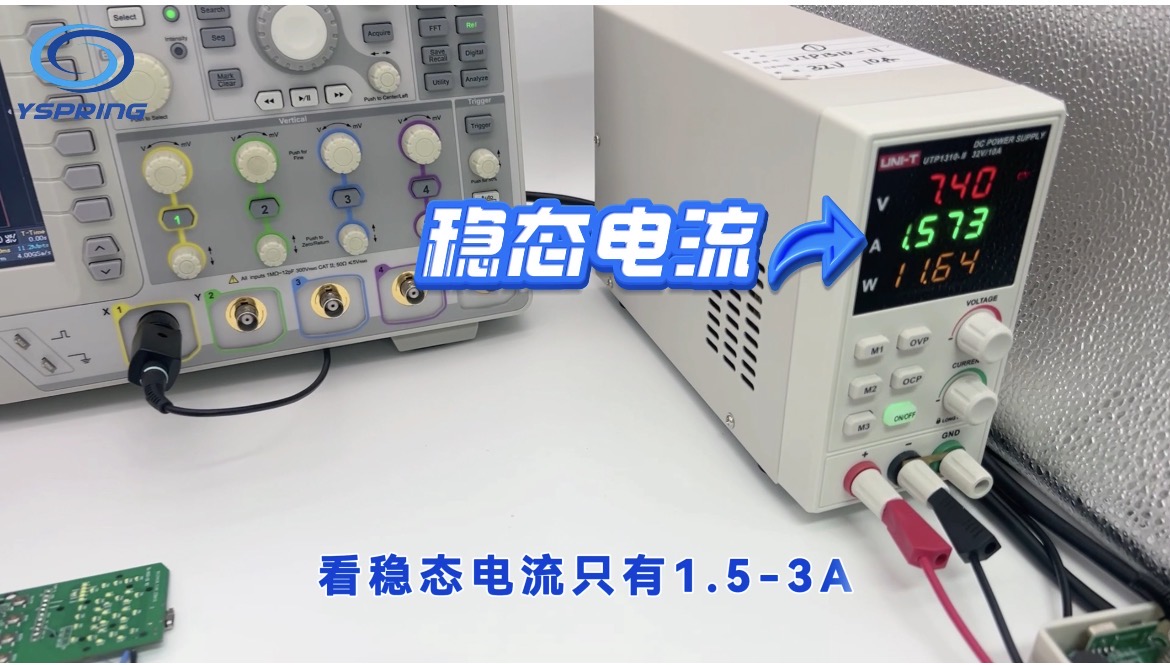

Key start current test: We conducted a key start current test, and the results showed that when the pump was started and entered steady state operation, the current was only stable between 1.5-3A. This outstanding current performance is attributed to the optimization of the BLDC algorithm, which enables the motor to achieve "silky" acceleration, avoiding the violent impact during traditional motor startup. It not only effectively reduces energy consumption, but also provides good protection for the motor, extending its service life.

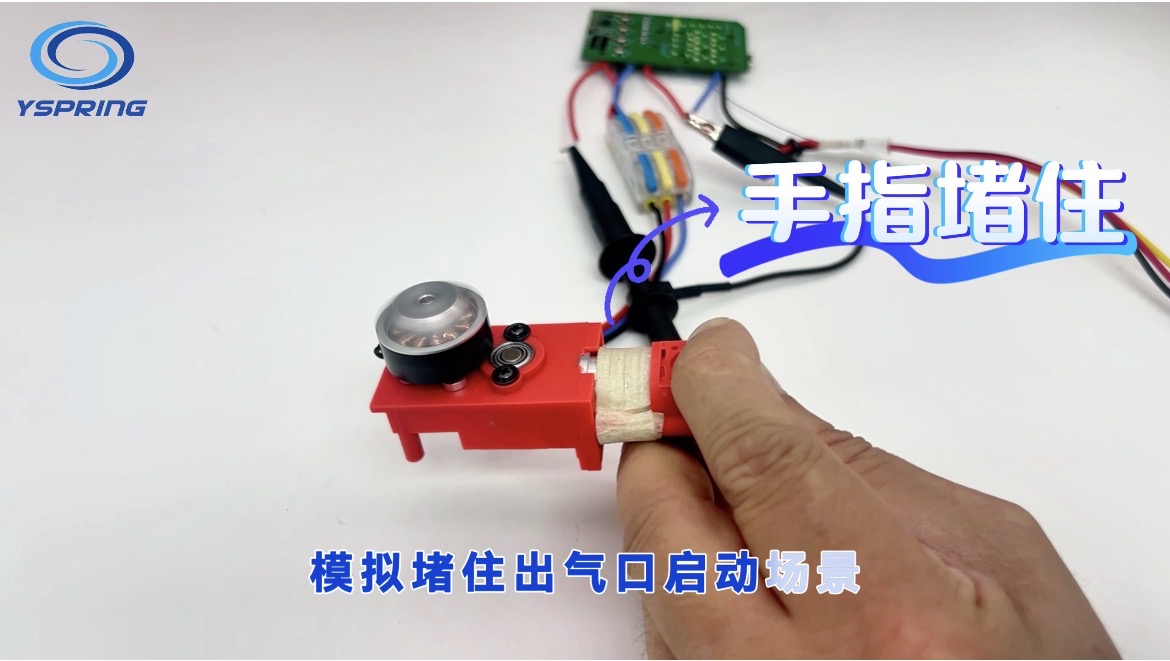

Blocking limit test: To verify the performance of the air pump under extreme working conditions, we simulated the scenario of blocking the outlet to start. Under such extreme load conditions, the motor can still start and operate stably, fully demonstrating its powerful power performance and stability, which can meet the inflation needs of users in various complex environments.

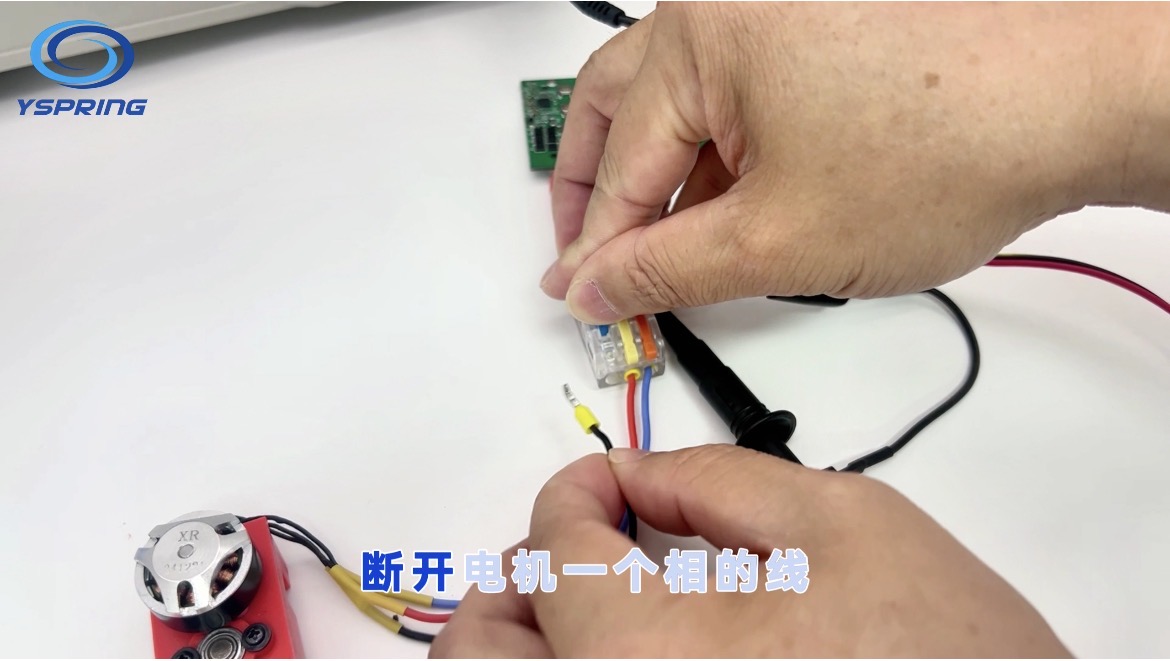

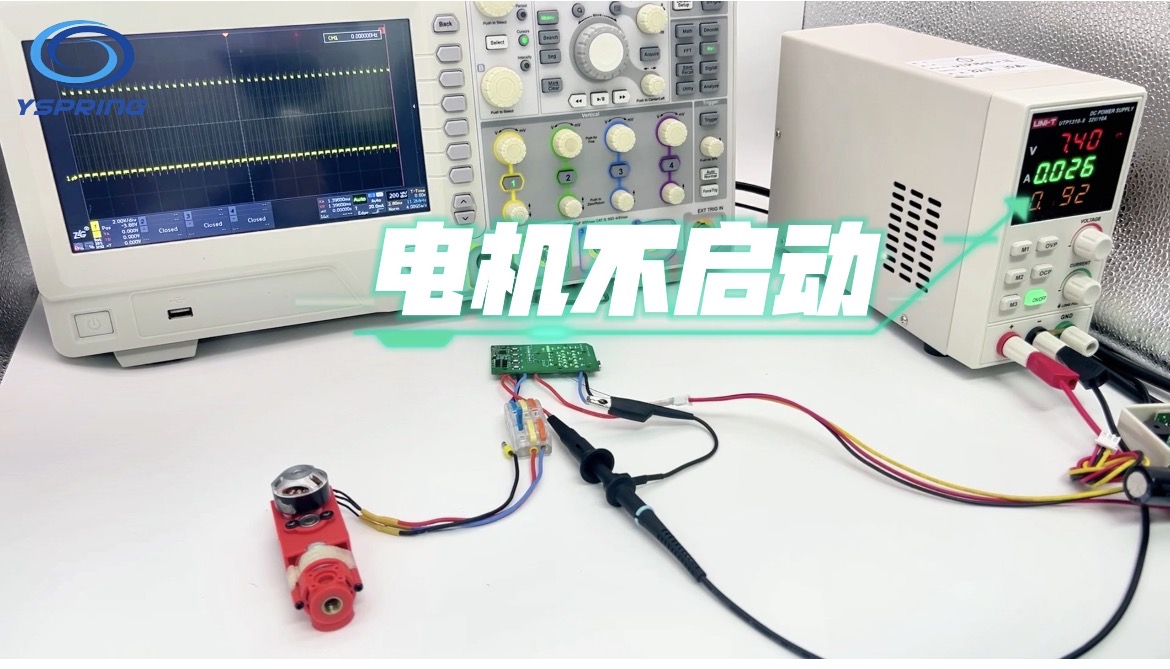

Phase loss protection test: We further conducted a phase loss protection test by disconnecting the wire of one phase of the motor to simulate a fault situation. When a phase loss problem occurs, the phase loss protection function is quickly triggered, effectively avoiding possible damage to the motor due to phase loss operation, ensuring the safety and reliability of the equipment.
Advantages of the plan
The entire plan achieves significant breakthroughs in efficient driving, safety protection, and scene adaptability of the air pump through the software hardware collaborative design of "chip+algorithm". The BLDC solution has many advantages such as high chip integration, high efficiency, energy saving, fast inflation, low noise and vibration, long motor life, and multiple protection functions, providing users with a comprehensive and high-quality inflation experience.
If you need to further understand the technical details of this intelligent air pump or obtain relevant technical support, please visit the YSPRING official website (www.yspringtech. com) or call the technical support team (075-86217885). Thank you for your interest in YSPRING intelligent air pump. We look forward to bringing you more cutting-edge technology information in the next issue!
