YS32 series MCU offline programming full process disassembly
Are you still struggling with low programming efficiency in the lab and the tendency for errors in batch programming on the production line? The YspringYS32 series MCU offline programmer makes its debut! No need for real-time monitoring by a computer, just one USB cable for power supply, and a single press of the red programming button to start programming. It handles everything from single-unit debugging to mass production at the thousand-unit level! This article provides an in-depth breakdown of the entire process from "program preloading → hardware direct connection → offline batch programming", guiding you to understand the "correct way" of industrial-grade MCU programming!

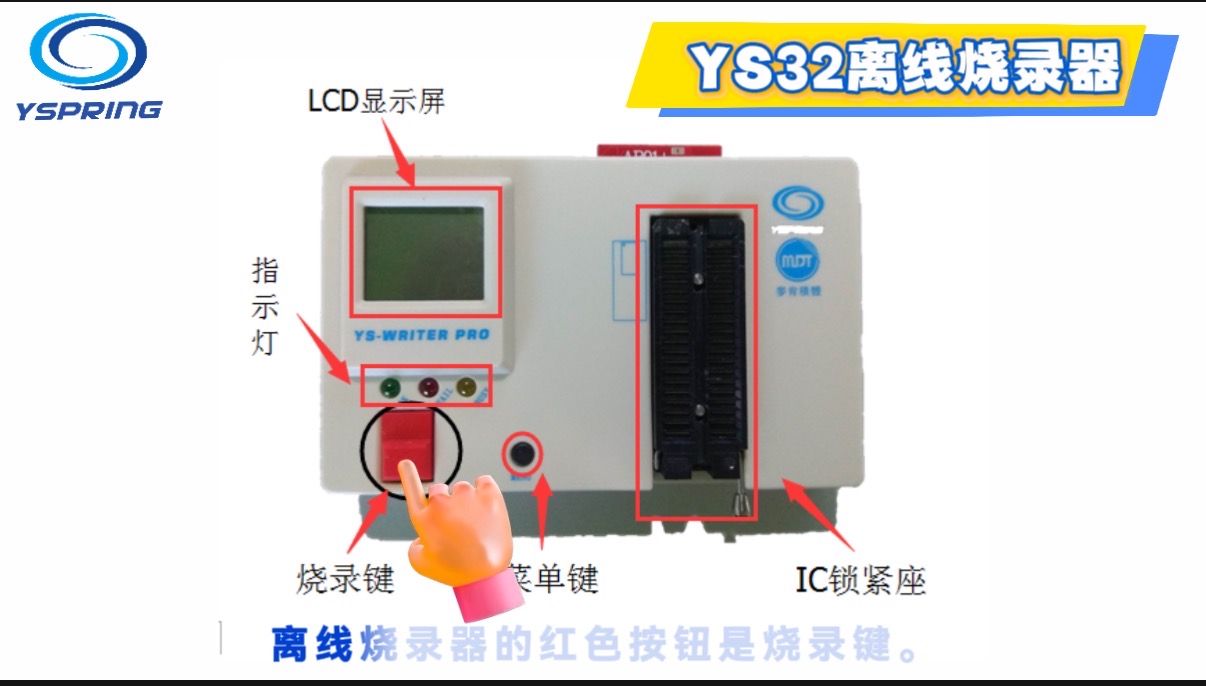

[Unveiling the Core Hardware]

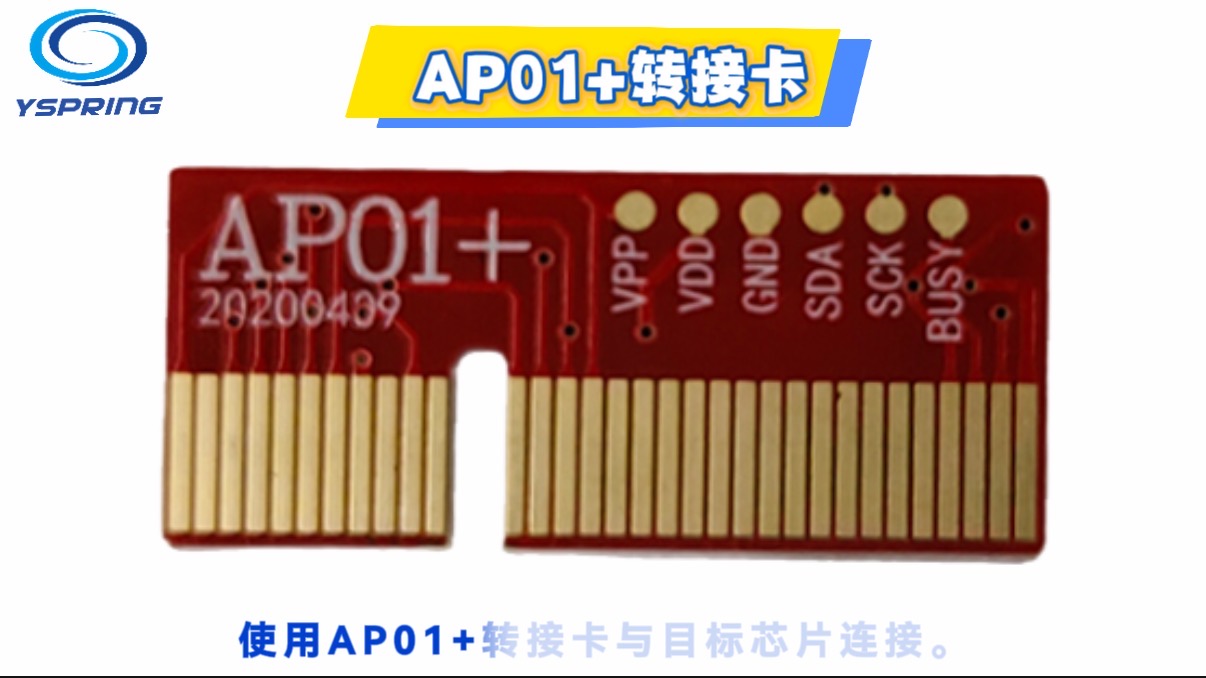

•Fully compatible: Universal for the entire series of MCUs such as YS32F410/YS32T030, supports direct connection of AP01+ adapter card to 32-bit chips
• Intelligent interaction: The programmer screen displays the chip model, CRC check value, and number of successful operations in real time, with close-up shots for detailed inspection
• Three-color indicator lights: When the BUSY light is on, it indicates that the programming is in progress; when the OK light is on, it signifies success, and the buzzer simultaneously indicates the status
• Industrial protection: Built-in self-resetting fuse, durable plug-in interface design, stable operation in a 7×24-hour mass production environment
[Three-step Quick Operation Guide]
01 [Program Writing | Pre-programming on Computer]

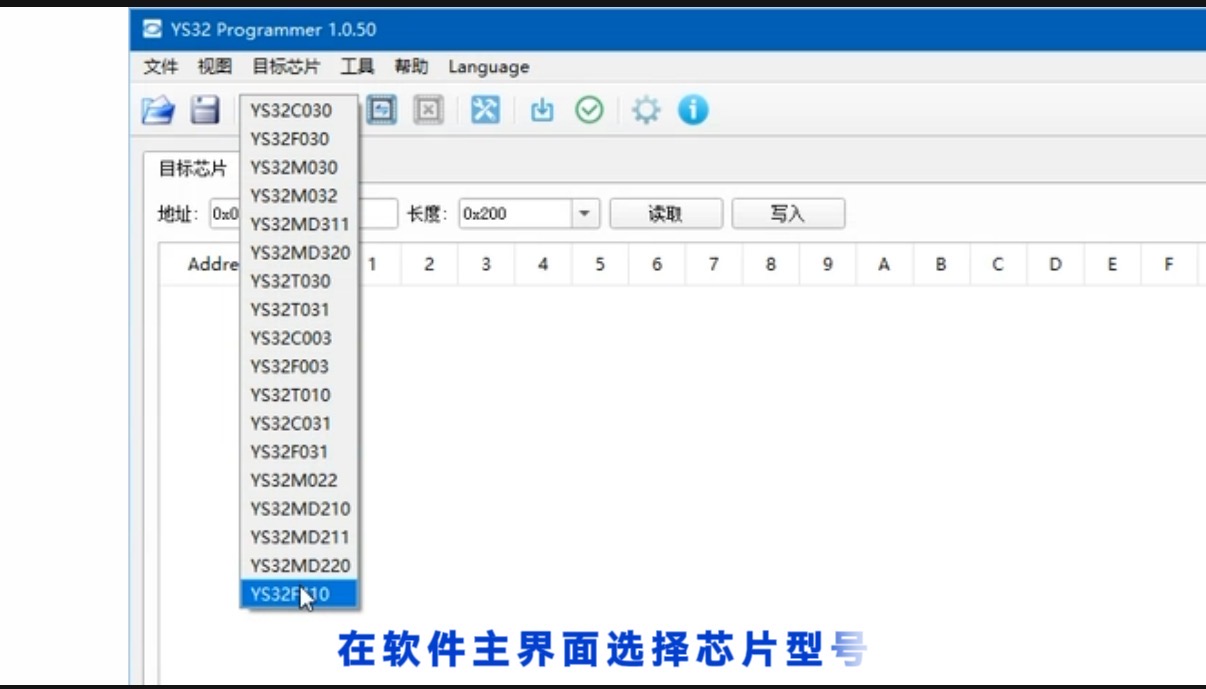

▸Connect the programmer via USB → Open the YS32 Programmer software → Select the chip model (e.g., YS32F410)

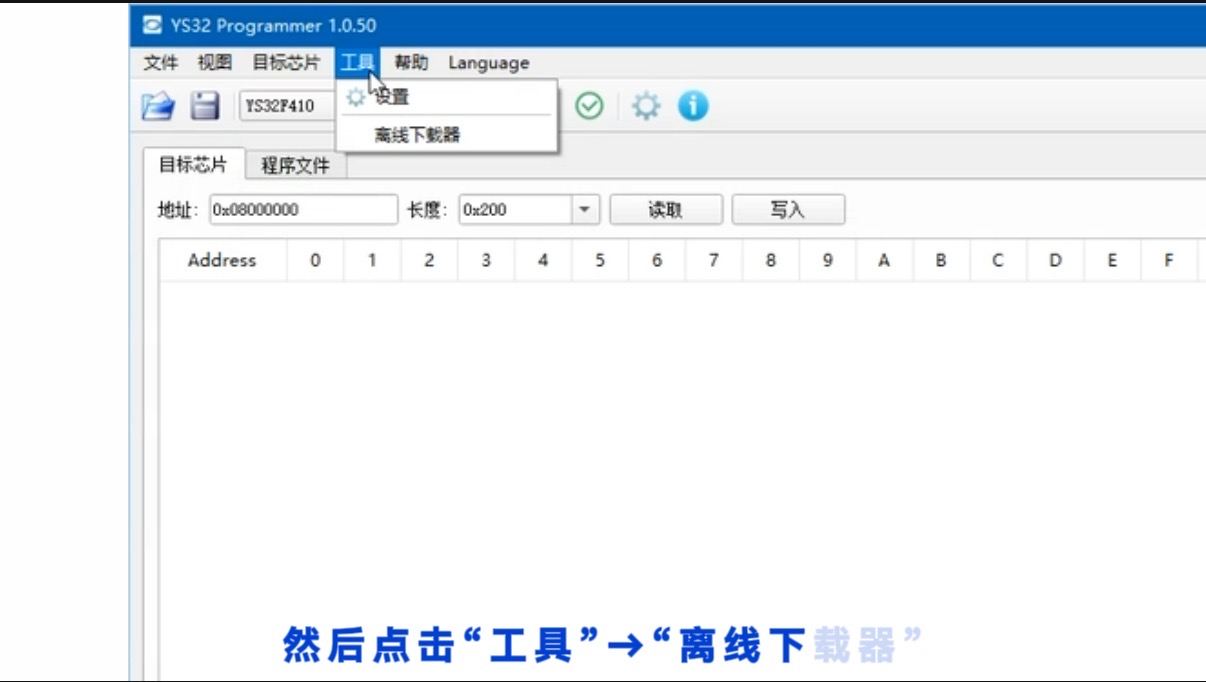

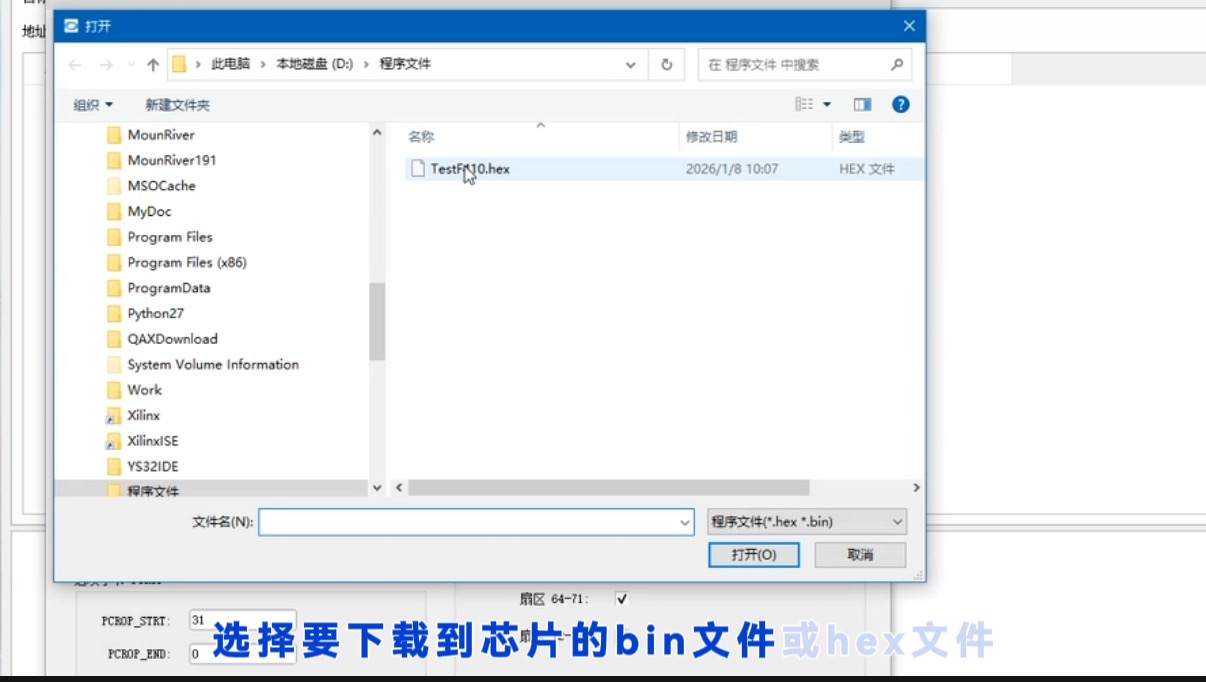

▸Click "Tools" → "Offline Downloader" → load the bin/hex file → apply → wait for the "Set Successfully" prompt
02 [Hardware Connection | Four-Wire Direct Connection Method]

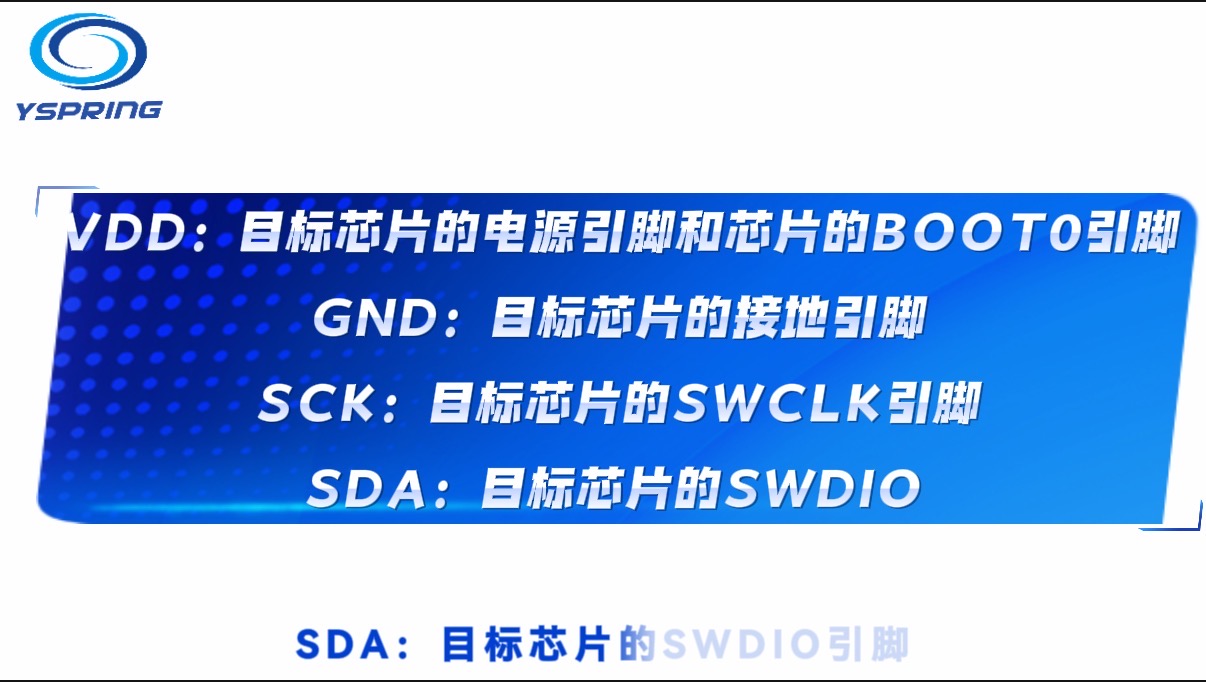

▸ Correspondence of signal lines:
VDD → target chip power supply + BOOT0 pin
GND → Ground terminal
SCK→SWCLK (clock line)
SDA→SWDIO (data line)
03 [Offline programming | Computer-free mode]

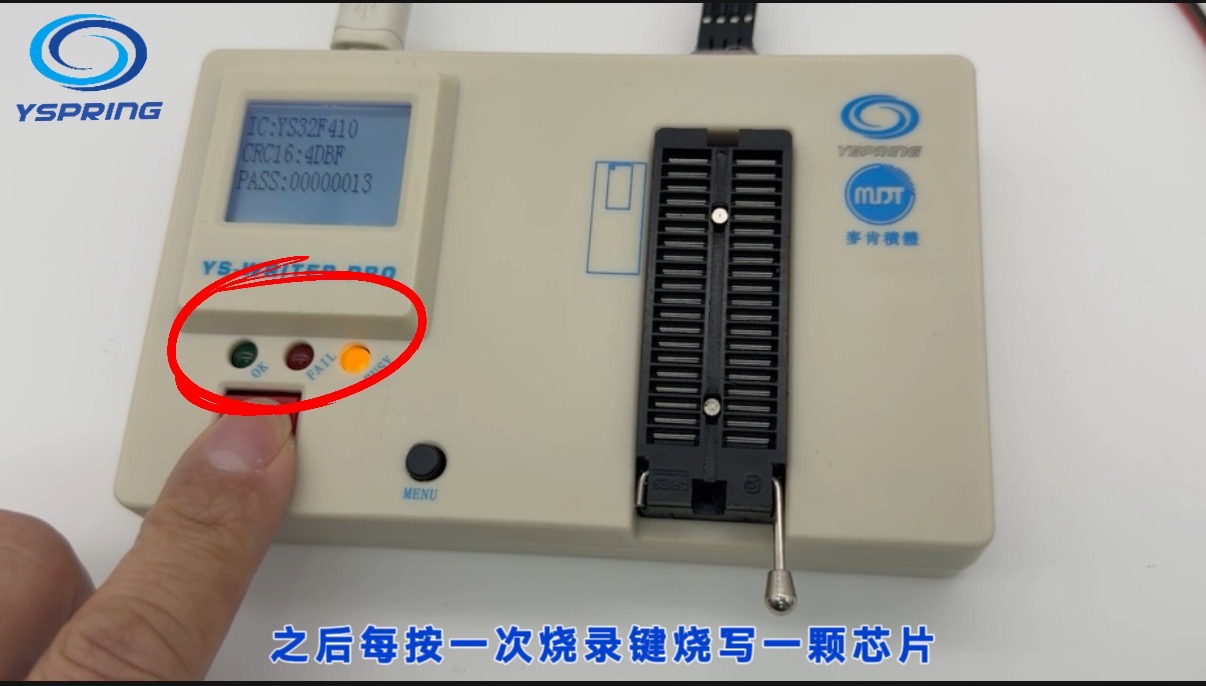

▸ USB cable only provides power → After power-on, pressing the programming button for the first time displays the chip model + CRC check value
▸ Each subsequent press will program one chip → The BUSY light is on, indicating that programming is in progress → The OK light is on, indicating success
▸ The screen displays the real-time count of programmed items and supports setting limits on the number of programming attempts
[Advanced application scenarios]
Smart health pot:
YS32T030C8T6 achieves a temperature control accuracy of ±1℃ and supports multi-stage heat preservation settings
Industrial controller:
Paired with AP01+ adapter card, it enables batch programming of 32-bit MCUs and supports remote firmware updates
Laboratory verification:
Implement dual modes of SWD online debugging and offline programming in conjunction with the Keil development environment
[Expert-level debugging skills]
Programming speed optimization:
Suggested 10MHz clock
Anti-interference design:
The length of communication cables should be controlled within 1.5 meters to avoid signal attenuation
Power management:
When the target board is powered independently, the programmer only provides signal connection
Firmware protection:
Option byte setting for read protection of user program
[Mass Production Management Plan]
Bulk programming:
Support machine control signals
Offline file encryption:
Generate offline files with timestamps to prevent unauthorized copying
Remote upgrade:
Support OTA firmware updates to accommodate the iterative needs of production line equipment
[Actual measured data]
From computer programming to batch programming, the entire process time is reduced by 60%, with a programming success rate of 99.8%. It supports a production capacity of thousands per hour! This is the true "mass production-level programming artifact"!
Bookmark this guide now and use it alongside the "YS32 Programmer" software help documentation to unlock more advanced techniques! Whether it's single-board verification in the lab or mass production on the production line, the YS32 series MCU offline programming solution perfectly covers the needs of the entire process chain - a must-have skill for engineers!
